Daba High Speed 8 Colors Coffee Bag Flexo Printer Flexographic Printing Press Machine
Introduce sensitization resin as flexible printing plate. It is a kind of ideal printing equipment for producing paper packing bag for good, supermarket handbag, vest bag and clothes bag,etc.
Category:
Keyword :
Product details
Introduction
Introduce sensitization resin as flexible printing plate. It is a kind of ideal printing equipment for producing paper packing bag for good, supermarket handbag, vest bag and clothes bag,etc.
Printing materials as following:
1.Polyethylene, polyethylene plastic film printing
2.Bag(packing bag for food, supermarket handbag, vest bag and clothes bag printing
3.Roller paper and craft paper printing
4.Pp woven bag , pvc film, bopp film printing
5.Laminated bag rolling printing
6.Non woven rolling printing
7.Rice bag pp woven printing
8.Paper printing
Note:Different printing material , machine some parts design different. Pls kindly show Printing material when inquiry.
Main Features & Advantages
1. The frame adopt 75MM thick wall,full casting flat plate,increase the scale and so on to enhance the stability.
2. The printing roller is made of thickened steel bars, with 10 silk thick hard chrome protective layer.
3. The aluminum alloy guide wheel,with hard oxidation,dynamic balance,static balance treatment.
4. High-precision wider synchronous belt drive,low noise while high speed running,low vibration,makes machine more stable.
5. The plate roller gear,adopts special helical gear transmission.Each tooth 5MM, more stable printing effect,and more accurate printing length.
Technical Parameter
|
Model |
DBT8-600 |
DBT8-800 |
DBT8-1000 |
DBT8-1200 |
DBT8-1400 |
DBT8-1600 |
|
Max. Material width |
600mm |
800mm |
1000mm |
1200mm |
1400mm |
1600mm |
|
Max. Printing width |
560mm |
760mm |
960mm |
1160mm |
1360mm |
1560mm |
|
Printing color |
8+0, 7+1, 6+2, 5+3, 4+4 |
|||||
|
Printing length |
11.8''-35.4''(300-900mm)/11.8''-47.2''(300-1200mm) |
|||||
|
Printing cylinder way |
Hydraulic control up and down |
|||||
|
Drive type |
Synchronous belt drive |
|||||
|
Mechanical speed |
120m/min |
|||||
|
Max.running speed |
100m/min |
|||||
|
Anilox roller |
(1) Metal anilox roller 8pcs:100-300LPI (2) Ceramic anilox roller 8pcs: Shanghai murata brand 200-800LPI Open type doctor blade 8pcs |
|||||
|
Tension system |
Automatic tension controller with magnetic powder brake and clutch |
|||||
|
EPC |
Web guide 1pc |
|||||
|
Register precision |
Longitudinal:±0.2mm crosswise:±0.2mm; |
|||||
|
Color register |
By manual |
|||||
|
Unwind/rewind dia. |
Φ1000mm/Φ1200mm/Φ1500mm |
|||||
|
Dry system |
Electric heating |
|||||
|
Machine power |
38kw |
40kw |
42kw |
45kw |
50kw |
55kw |
|
Machine size (L x W x H) |
5.8×2×3.8m |
5.8×2.2×3.8m |
5.8×2.4×3.8m |
5.8×2.6×3.8m |
5.8×2.8×3.8m |
5.8×3×3.8m |
|
Machine weight |
5500Kg |
5700 Kg |
5800 Kg |
6000 Kg |
6200 Kg |
6500 Kg |
|
Machine Also can made as client requirement. If you need other width Size or high speed machine, pls kindly contact us directly. |
||||||
Optional Parts
1.Various size of Printing cylinder
2.Double unwinder/rewinder
3.Automatic pneumatic loading
4.Automatic pneumatic unloading
5.Crane:Manual or electric
6. PLC:Taiwan brand
7. Enclosed chamber doctor blade (Improve printing speed)
8.Video camera monitor
9.Motor register-up and down
Details Images：
.jpg)
Unwinder and rewinder part:
Manual single Unwinder and rewinder.
Printing part
With 8 sets ink pumps , it is circulating , the ink will never dry.
With single doctor blade and stainless anilox roller.
Plate roller is Hexagon design with Chrome.
.jpg)

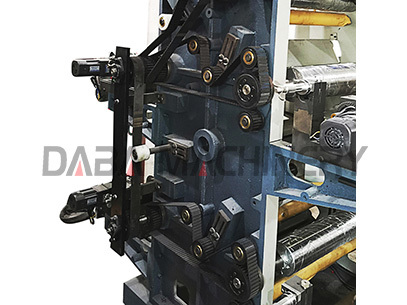

Transferring part:
Synchronous belt to guarantee good color register to save waste.
Drying part:
The oven length is 2.5 meters , all printing group is heat wind circulating.
Printed Samples:
.jpg)
.jpg)
