Daba DBZ Series 2 Colors Inline Flexographic Printing Machine-Connect To Extruder
Introduce sensitization resin as flexible printing plate. It is a kind of ideal printing equipment for producing paper packing bag for good, supermarket handbag, vest bag and clothes bag,etc.
Category:
Keyword :
Product details
Introduction
Introduce sensitization resin as flexible printing plate. It is a kind of ideal printing equipment for producing paper packing bag for good, supermarket handbag, vest bag and clothes bag,etc.
Printing materials as following:
1.Polyethylene, polyethylene plastic film printing.
2.Bag(packing bag for food, supermarket handbag, vest bag and clothes bag printing.
3.Roller paper and craft paper printing.
4.Pp woven bag , pvc film, bopp film, printing.
5.Laminated bag rolling printing.
6.Non woven rolling printing.
7.Rice bag pp woven printing.
8.Paper printing.
Note:Different printing material , machine some parts design different. Pls kindly show Printing material when inquiry.
Main Features & Advantages
1. Easy operation,flexible starting,accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic operation printing cylinder lift and lower,is will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation,it will automatically break circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Technical Parameter
|
Model |
DBZ2-600 |
DBZ2-800 |
DBZ2-1000 |
DBZ2-1200 |
DBZ2-1400 |
DBZ2-1600 |
|
Max. Material width |
600mm |
800mm |
1000mm |
1200mm |
1400mm |
1600mm |
|
Max. Printing width |
560mm |
760mm |
960mm |
1160mm |
1360mm |
1560mm |
|
Printing length |
190-1060mm |
|||||
|
Drive type |
Straight gear drive |
|||||
|
Printing cylinder lift |
Pneumatic control up and down |
|||||
|
Mechanical speed without material |
80m/min |
|||||
|
Max. running speed |
60m/min |
|||||
|
Plate Thickness
|
2.38mm (Both side adhesive tape included) |
|||||
|
Anilox roller |
Metal anilox roller:100-300LPI |
|||||
|
Unwind/rewind Diameter |
Φ600mm |
|||||
|
Drying way |
Electric heating |
|||||
|
Machine power |
8kw |
10kw |
12kw |
14kw |
16Kw |
18kw |
|
Overall Dimension |
2.3×1.8×2.3m |
2.3×2.0×2.3m |
2.3×2.2×2.3m |
2.3×2.4×2.3m |
2.3×2.6×2.3m |
2.3×2.8×2.3m |
|
Machine Also can made as client requirement. If you need other width Size or high speed machine, pls kindly contact us directly. |
||||||
Optional Parts
1.Automatic tension control
2.Web guide
3.Air shaft
4.Various size of Printing cylinder
5.Double unwinder/rewinder
6.Automatic pneumatic loading
7.Motor register-up and down , left and right
Details Images
Unwinder and Rewinder Part
Manual single Unwinder and rewinder ,with 76 mm diameter air shaft.
Auto magnetic brake 5 kg for both unwinder and rewinder.
With auto tension and EPC for unwinder.
With auto tension for rew

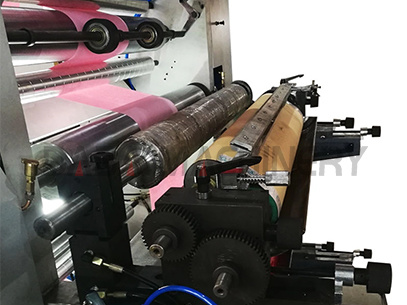

Printing and Transferring Parts
Two sets ink pumps , controlled by ink motor , the ink is circulating , it will never dry.
With single doctor blade and metal anilox roller.
*Anilox roller is hexagon design with hard chrome.
Straight Gear
Drying Part
The oven length is 0.5 meters , the ink will dry very faster.
Printed Samples as Follows
